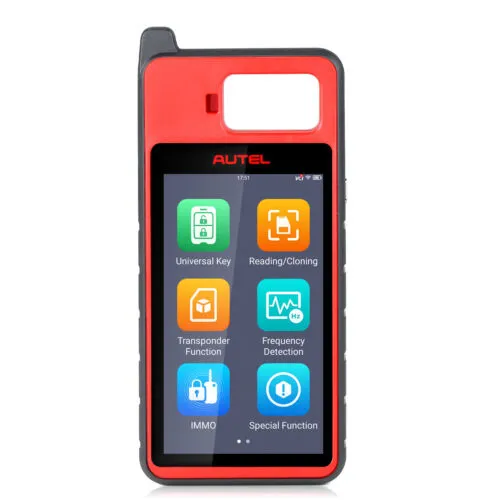

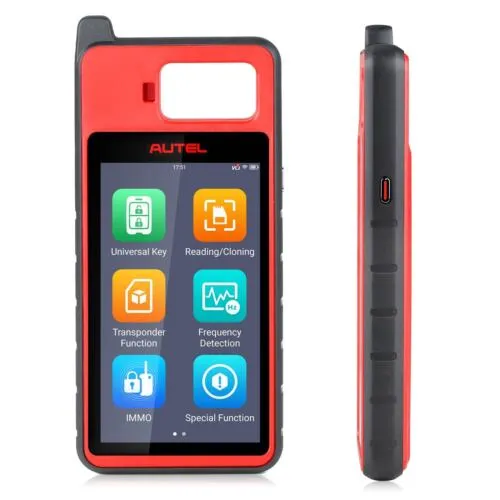

Key Programmer Autel KM100E Universal Key Generator Immobilizer Programmer
KEY FUNCTIONS
60-Second Key Generation (Autel Universal Only)

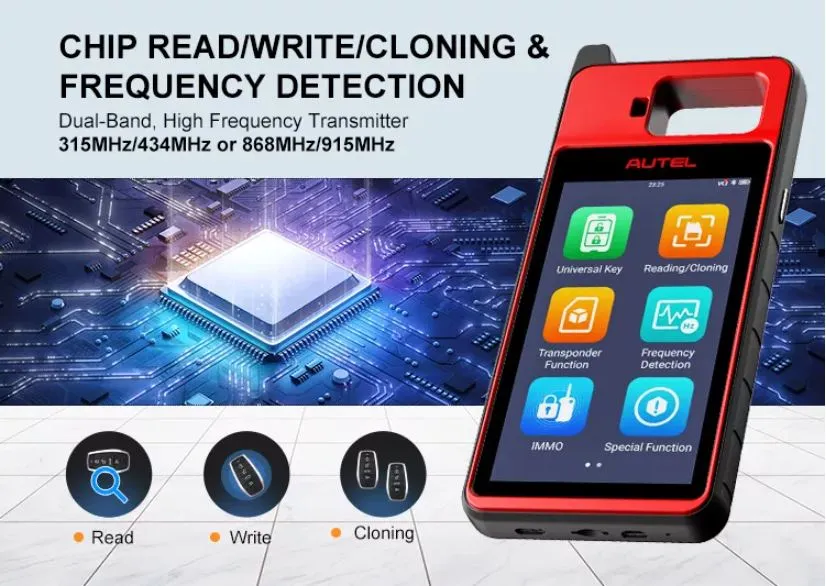

Transponder Reading/Writing/Cloning
Frequency Detection&Ignition Coil Detection
Compatible With Autel Blank Universal Smart Keys
Key Renewal:Supporting36Vehicle Makes
Transponder Editing:Supporting20Categories
Dual-Band,High FrequencyTransmitter315m/434mor 868m/915m Supporting Certification Requirements of Various Regions
Supporting PLC V200
10 Hot & Special Functions, All- in-one Tool Solutions for Auto Keys!
Apart from professional features such as Universal Ke-y Generation, Complete IMMO Key Learning, 2022 Autel MaxiIM KM100 also supports 10 hot and special functions:

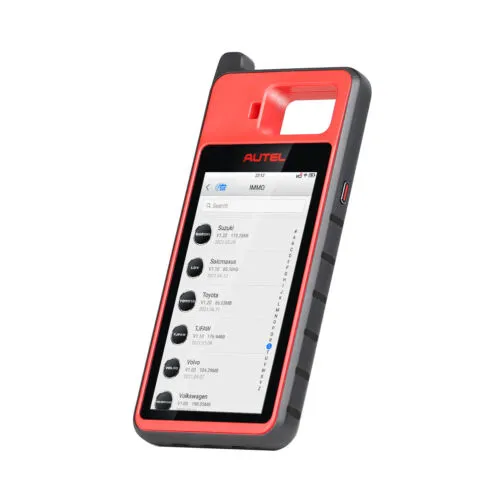

IMMO Data Processing: load the IMMO related ECU information of a vehicle to calculate a password and other IMMO information, which will be written into the transponder of the vehicle, the processed transponder can be used to start the vehicle, in other words, you now have an extra ke-y available.
Key Unlocking (Key Renewal): use the KM100 to renew the firmware of the used smart key via cable connection to un-lock a new car, working on 36 vehicle makes.
Toyota Smart Un-locking: unlock of 4D 40/80-bit and 8A 128-bit original Toyota smart chips, with this function, you can unlock other Toyota models with your Toyota smart key.
Universal Key Information Detection: read the Autel universal ke-y information, including the serial number, key ID, and IMMO version etc.
Button Adjustment: assign the button functions of the Autel universal key.
Ignition Coil Detection: place Autel KM100 low frequency detection collector to the ignition coil or the emergency start coil to detect the transponder type, Detection records will appear at the bottom of the screen.

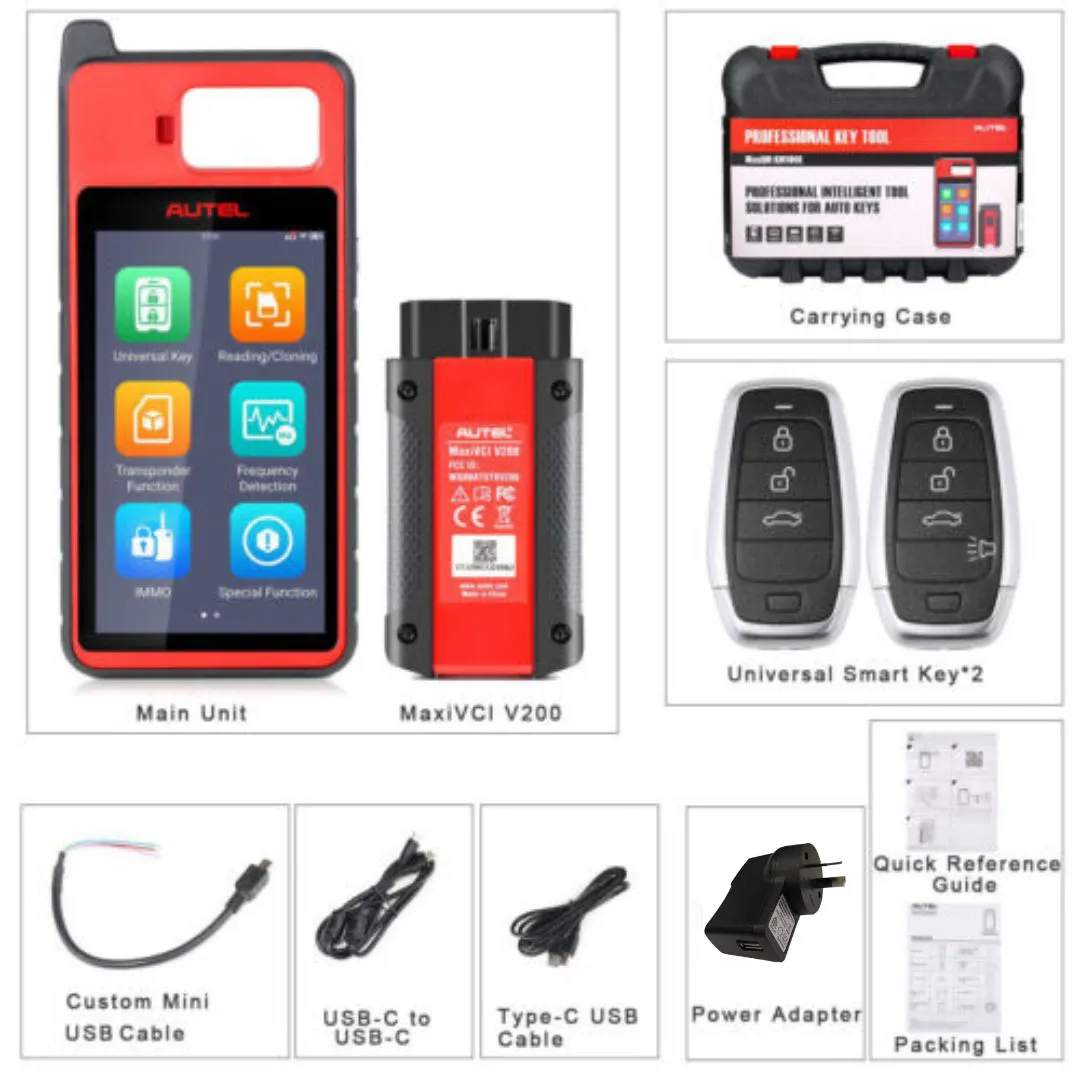

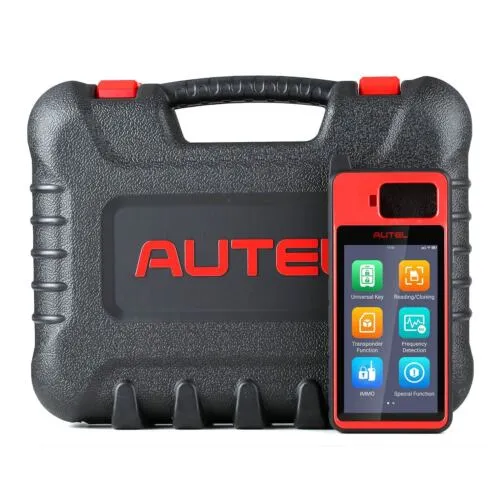

Autel MaxiIM KM100 Intelligent Key Programming Tool package includes 2 Autel universal blank keys for one-stop solution. Autel KEY is produced strictly according to OE factory production criterion, and each model is tested repeatedly to ensure the high accuracy rate and full functionality, supporting Certification Requirements of Various Regions. Programmed Autel’s KEY universal key as smart key replacement for more than 700 vehicles, and the key can be reused.
Autel Smart Key with High-Frequency Transmitter is compatible Dual-Band (315 mhz/ 434 mhz or 868 mhz/ 915 mhz), support waking up the car 40meters away.
Note: There is no battery in Autel Blank Ikeys, please power up the Autel KEY with the CR2032 button battery before use.

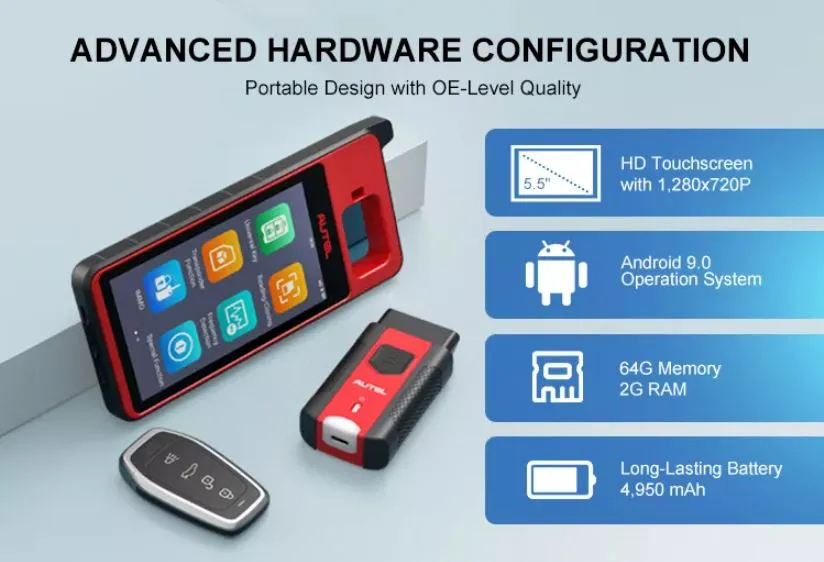

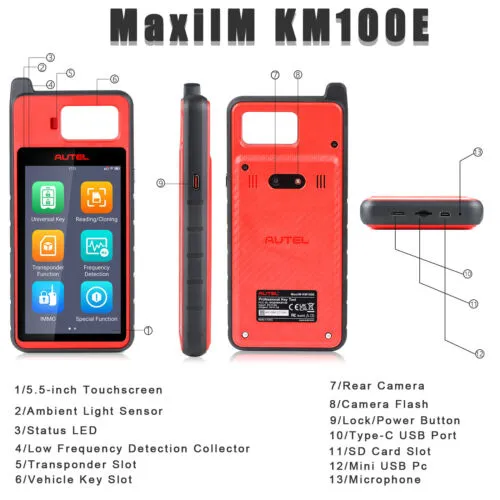

Superior Hardware Configualtion:
Screen：5.5-inch screen with 1280 x 720 resolution
Processor：Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
Operating System：Android 9.0
Memory：2GB RAM/64GB on-board memory
Camera：8 megapixels
Connection：Wi-Fi、 Bluetooth 5.0、SB 2.0 type C
Battery：4950mAh lithium-polymer battery

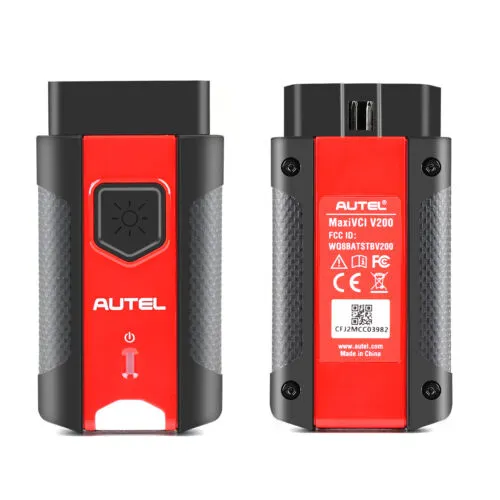

VCI：V200
Input：5V/2A
Sensor：Ambient light sensor
Audio Input/Output：MIC: supported,Speaker: supported
